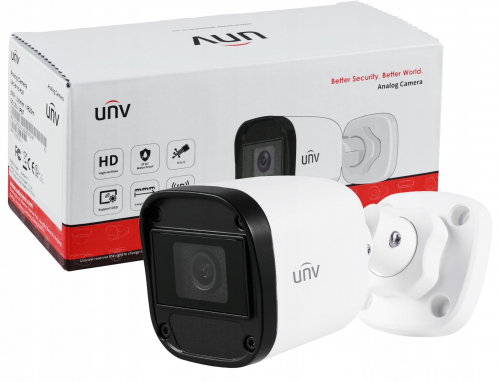

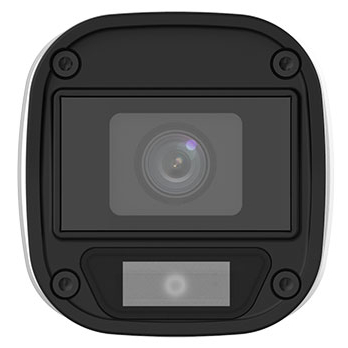

Uniview UAC-B112-F40 Full Specification
Item CCTV Camera
Model ✅ UAC-B112-F40
Brand Uniview
CCTV Type Fixed
Sensor 2MP
White Balance Two Modes: Auto (default), Manual
Lens 4 mm
Video Resolution 1920(H) x 1080(V)
Signal System Coxial
Day / Night 24/7 images
IR 20m
Connectivity Standard
Waterproof / Dustproof IP67
CCTV Housing Bullet
Power Supply DC 12V (±25%)
Camera
Pixel: 2MP
Size: ⅓”
Minimum illumination
0.01 lux (F1.6, AGC ON)
0 lux (white light on)
Lens
Lens mount: M12
Angle of View
H: 100.9° V: 56.5° D: 121.8°
Illuminator
Illuminator: One white-light illuminator
Illumination distance 20m
Lifetime: 60000 hours
Frame Rate
TVI / AHD / CVI: 1080P at 30fps
C[removed] PAL, NTSC
Shutter Time
PAL: 1/25s-1/50000s
NTSC: 1/30s–1/50000s
Digital Noise Reduction: 2D / 3D
WDR: DWDR
Flip Support
Horizontal Flip: 180°
Vertical Flip: 180°
Interface
Power: 5.5mm power interface
Video Output: BNC supports TVI / AHD / CVI / CVBS
Operating Environment
Temperature: -30 to 60℃
Humidity: ≤95% (RH, non-condensing)
Surge Protection: 4KV
Ingress Protection: IP67
General
Maximum Power Consumption: 2.4W
Dimension (L x W x H): 142 x 63 x 65mm
Body Material: Plastic
Weight: 145gm
Certification: CB, CE, FCC
Mount Type
3D bracket supplied
Surface mount (default)
Optional back box
Pole mount bracket
